Face Recognition Infrared Thermoter Automatic System Turnstile 30 Degree Filed View

2020 Hot sell detection with face recognition infrared thermoter Automatic system Turnstile.

1.Specification

Recognition mode: face ,body temperature, face mask.

Temperature measuring range: surface temperature -18 :-120 :C

Body temperature 28 :-43 :C

Camera :Monocular wide dynamic camera / binocular in vivo detection (optional)
Display : 10.1 inch HD display, HD full view, resolution 1280x800
Recognition height :1.2-2.2 meters

Angle of detected face : left--right : 30 degrees,up and down: 30 degrees
Recognition distance : 0.5-5 meters, variable lens
Recognition time :less than 1 second
Switch :5-way switch
Signal to noise ratio :250db (AGC OFF)
Wide dynamic range :>120db
Operating temperature :-10°C - +55°C/0% - 90%
Working humidity :15~90% relative humidity, no condensation
power :DC12V/3A
Equipment weight :12 kg (without base)
Size: 166 (W) * 26 (Thick) * 301 (H) mm

Material of case : explosion-proof full metal case

2.Face Mask detect

Can pass before bear properly face mask. If can not bear face mask or bear inproperly face mask,

he will be refused to pass.

3. Temperature detect.

Once someone body temperature is over 37.3 degree, will buzzer to warn.

4.Daily can output all records that all people will be detected

5. Can interface turnstile,door gate.

turnstile security gates

entrance turnstiles

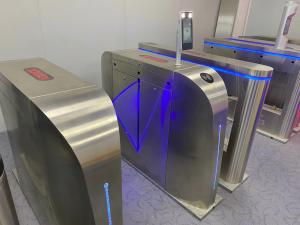

Face Recognition Infrared Thermoter Automatic System Turnstile 30 Degree Filed View Images
